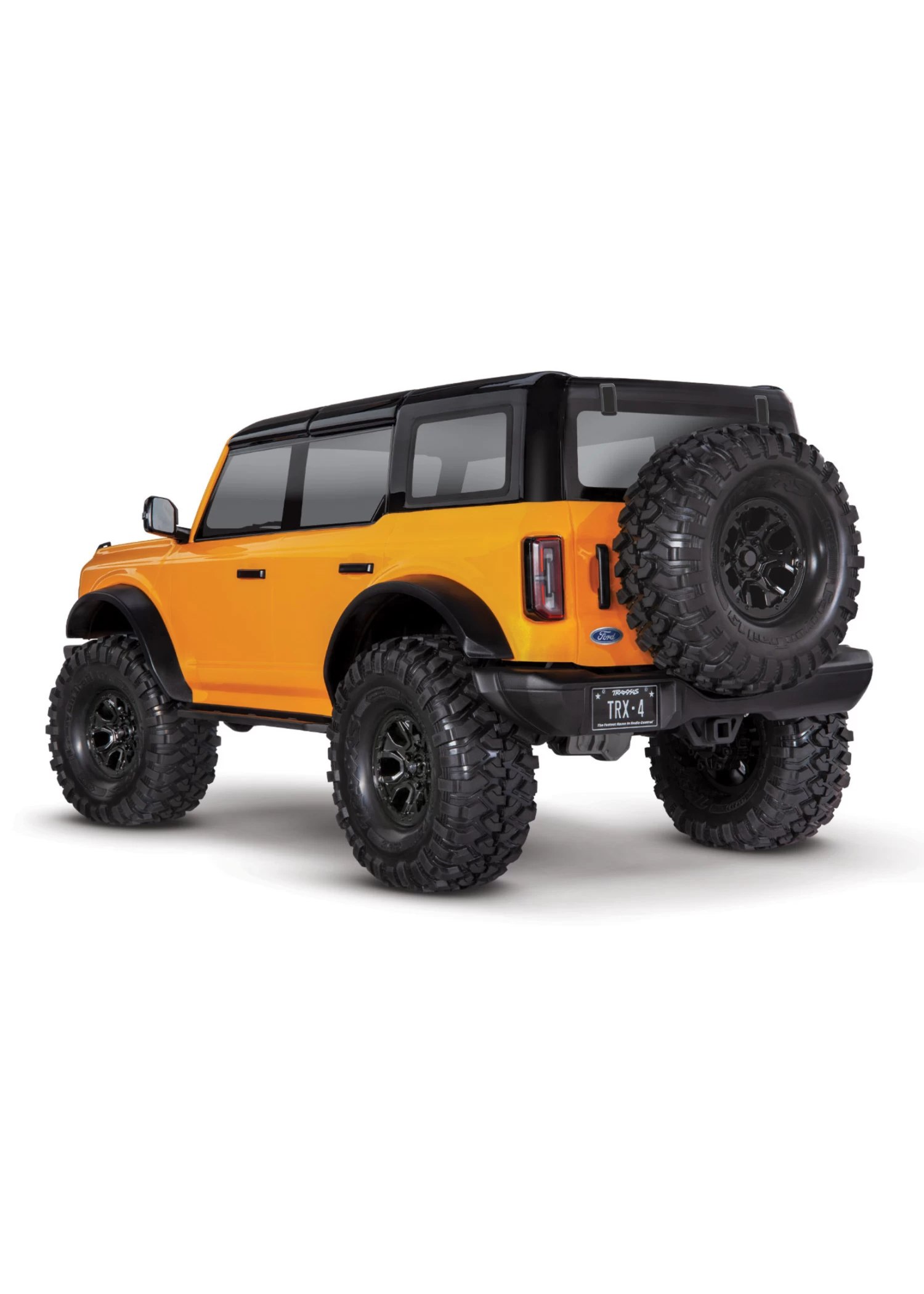

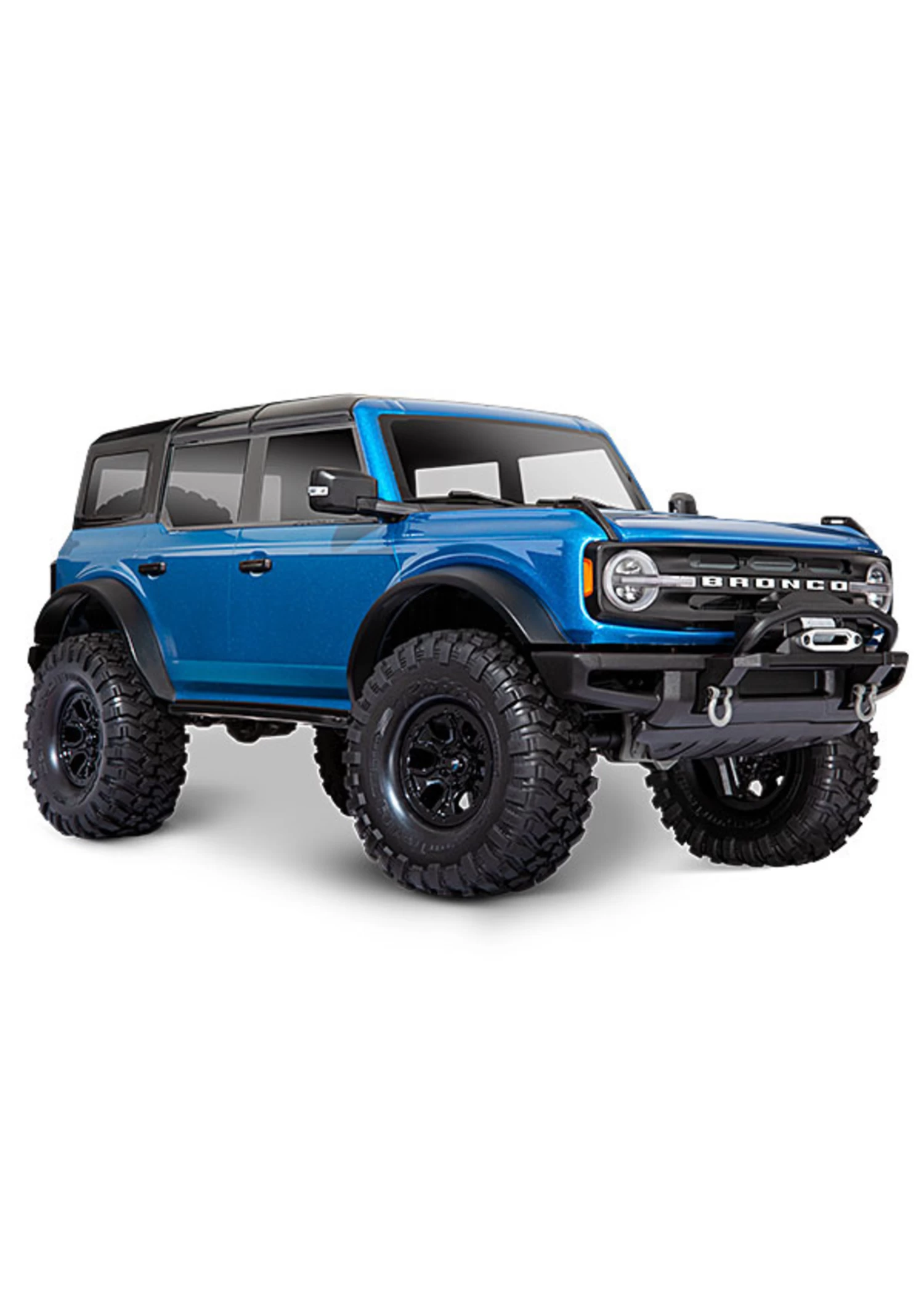

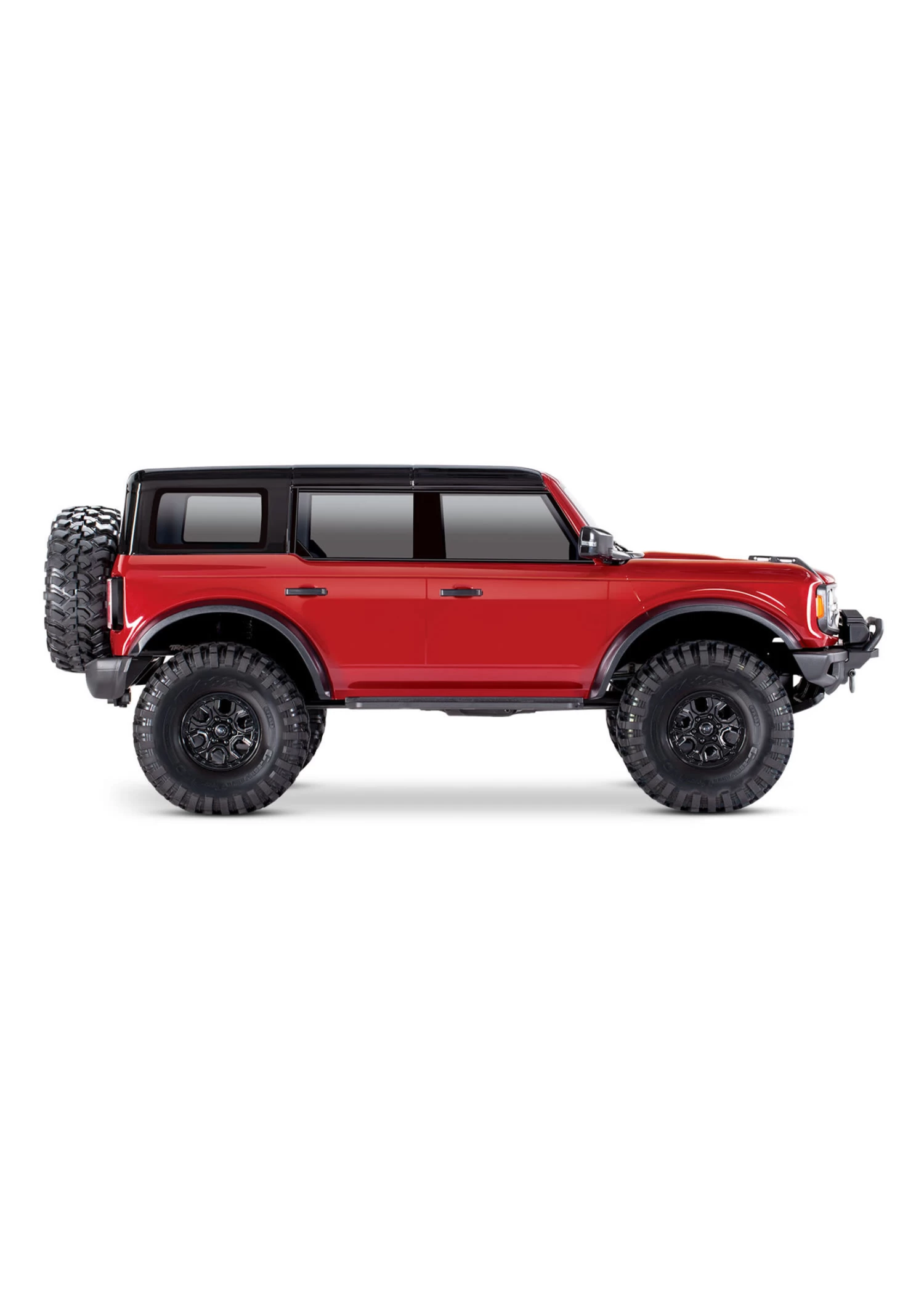

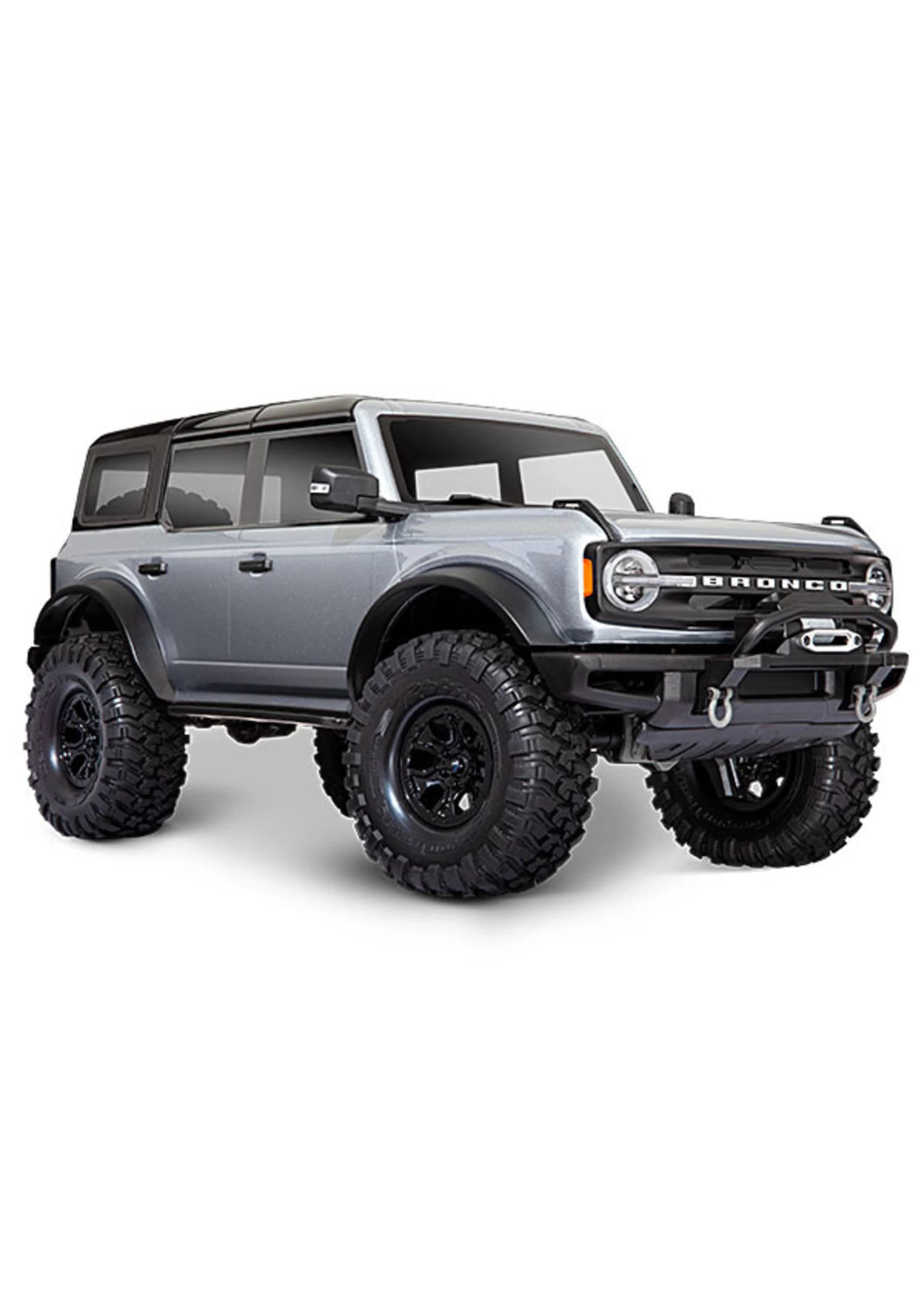

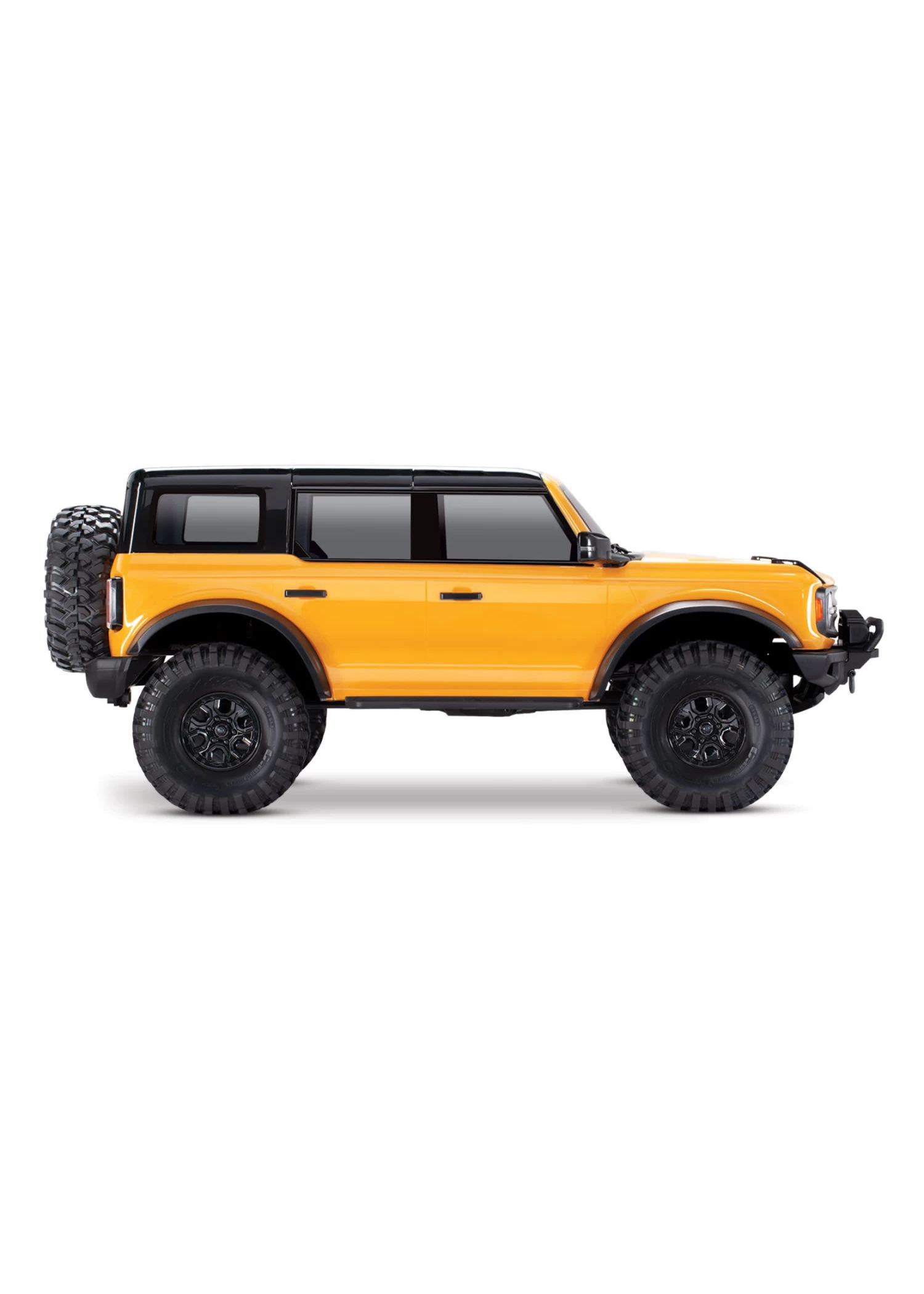

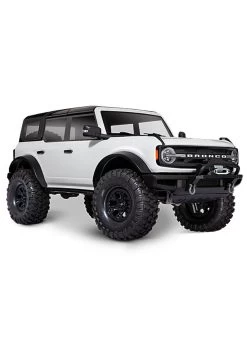

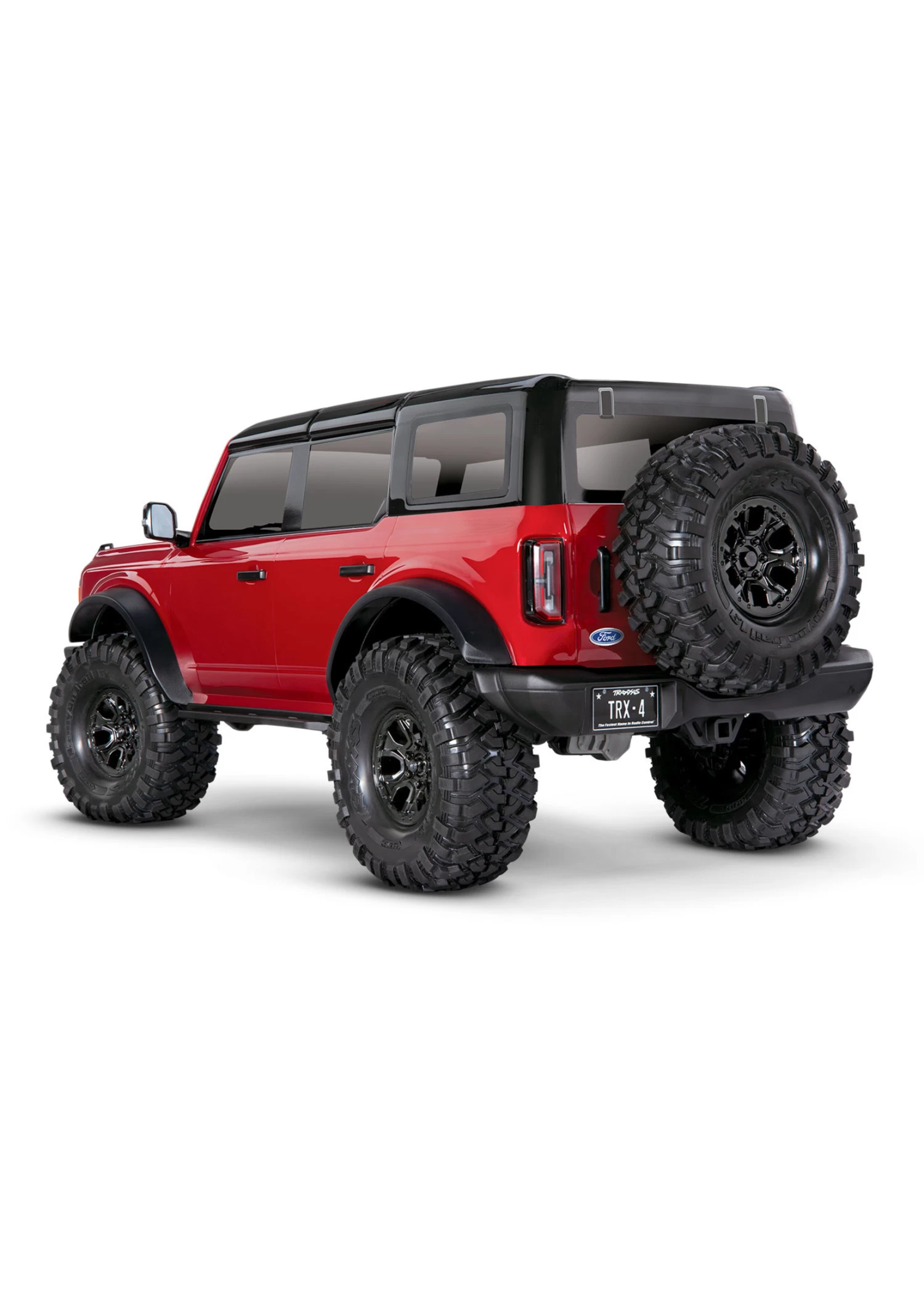

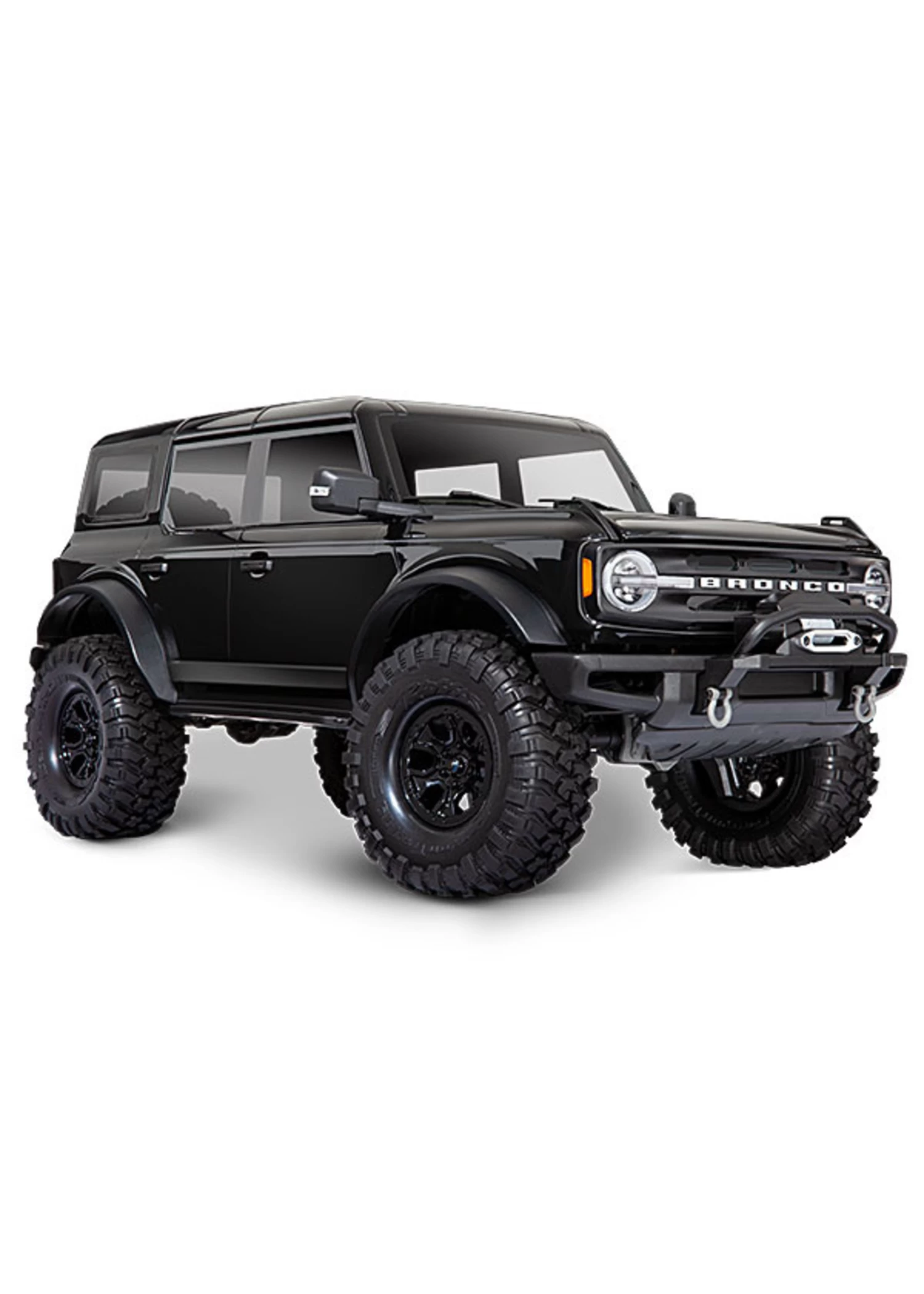

TRA92076-4 Traxxas TRX-4 2021 Ford Bronco: 1/10 4WD Electric Truck

The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.

1/10 Scale 4X4 Trail Truck, Fully-Assembled, Waterproof electronics,
Ready-To-Drive®, with TQi™ 2.4GHz 4-channel Radio System, XL-5 HV Speed Control,
Hi/Low Transmission, Remote Locking Differentials, and painted body

• Officially Licensed 2021 Ford® Bronco Body
  • Two-tone paint with black roof and clear windows
  • LED-ready headlights and tail lights with multi-function capability
  • Scale details
  • Black molded grille with white Bronco logo
  • Replica hood cowl w/ wipers and folding mirrors
  • Replica spare tire mount
  • Replica door handles
  • Tough PVC fender flares, wheel wells, and floor pans
  • Front and rear Bronco bumpers with skid plate and replica winch
• Clipless Body mounting
  • Clipless design for smooth body appearance
  • Rugged internal body cage for added rigidity
  • Body details mount directly to internal frame
• Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Five drive profiles
    • Sport Mode — forward / brake / reverse
    • Race Mode — forward / brake / no reverse
    • Training Mode™ – 50% forward / 100% brake / 50% reverse (patented)
    • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
  • Traxxas EZ-Set^® one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3S LiPo (7.4–11.1V)
  • Two stage low voltage protection (LVD)
• Titan 550 Motor
  • Powerful Titan® 21T reverse rotation motor with internal cooling fan
  • Precision, preset gear mesh adjustments
  • Motor retention separate from gear mesh

• Portal Axles
• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts
• TQi™ 2.4GHz Radio System
  • 4-channel transmitter
  • 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
  • Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality (sold separately)
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Exclusive Cruise Control feature for extended trail driving
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle endpoints
  • Patented waterproof receiver box with easy-access plug

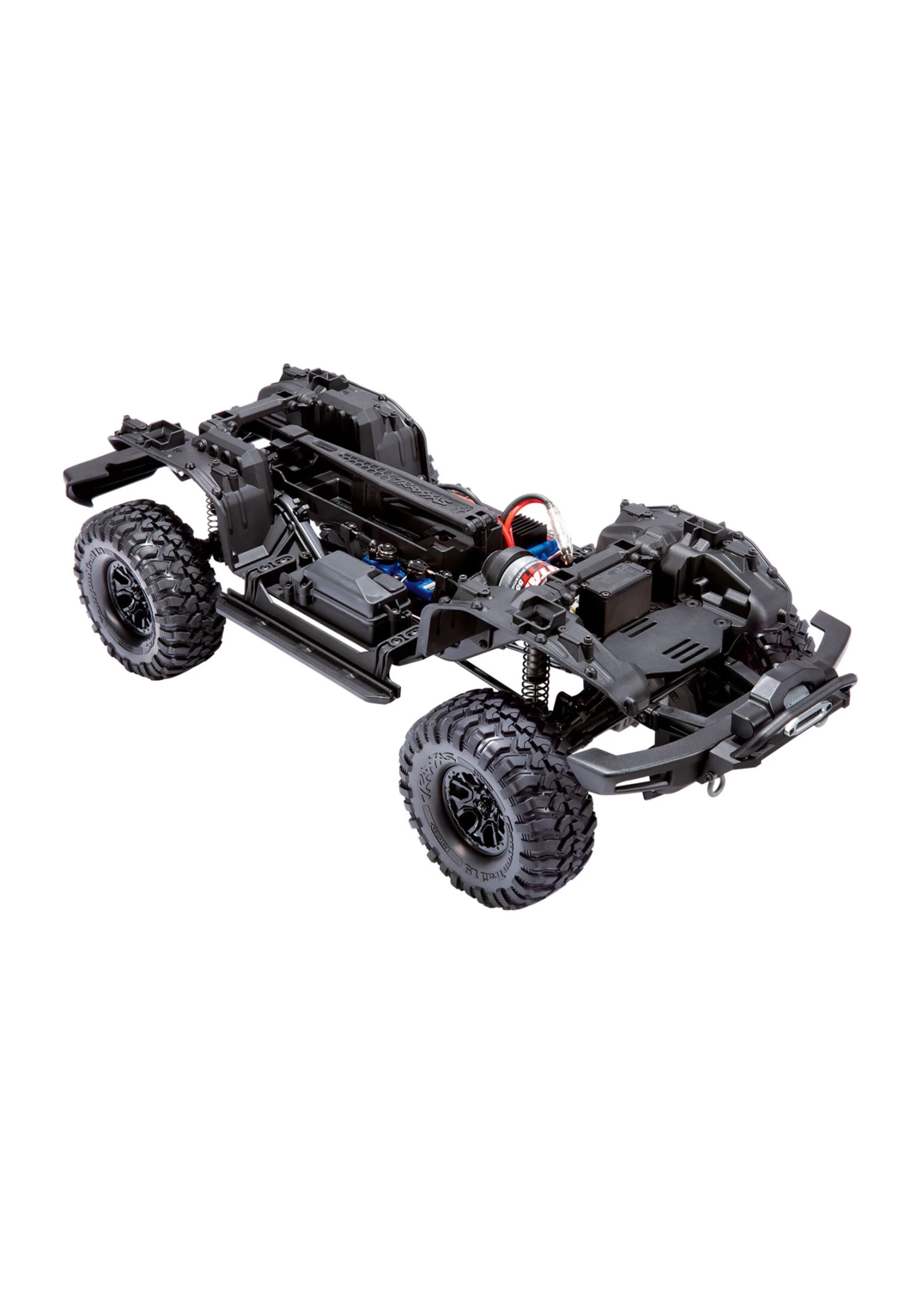

• Rigid Steel Frame
  • 1.5 mm thick steel frame rails increase torsional rigidity
  • Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
  • Adjustable rear shock tower positions for SWB and LWB configurations
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails
• Innovative Battery Compartment
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

• Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6 mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Remote locking steel gear differentials with cable-actuation
  • Steel gear transfer case
• Transmission
  • Two speed high/low range with remote shifting
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45° steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
• Suspension
  • Front — 3 link with panhard
  • Rear — Triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls
  • 5 mm diameter steel link rods with 4 mm threaded ends
• Aluminum GTS Shocks
  • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals
• Wheels and Tires
  • Replica black 2021 Bronco wheels
  • Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
  • Trail tuned S1 rubber compound
  • 12 mm steel hex
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating
• Requires Battery and Charger (Sold Separately)

Specs

Model Name:	TRX-4 2021 Bronco
Model Type:	Trail / Crawler
Model Skill Level:	1
Scale:	1/10
Weight:	6.42 pounds (2.91 kg)
Length:	22.98 inches (584 mm)
Width:	9.78 inches (249 mm)
Front Track:	9.78 inches (249 mm)
Rear Track:	9.78 inches (249 mm)
Height:	9.4 inches (239 mm)

Wheelbase:	12.8 inches (324 mm)
Center Ground Clearance:	3.14 inches (80 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	2-speed high/low, remote shifting
Differential Type:	4 gear, remote locking
Gear Pitch:	32 pitch
Servo(s):	#2075X metal gear, digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 4-channel transmitter with #6533 receiver
Battery Compartment Specs:	159 mm X 47 mm X 23 mm

Motor Specs

Motor Name:	Titan® 21T Reverse Rotation
Motor Type:	High-torque brushed motor
Motor Weight:	8.47 ounces (240 g)
Motor Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:	1.53 inches (39 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

ESC Specs

ESC Name:	XL-5™ HV
ESC Type:	Brushed
ESC Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight:	2.60 ounces (74 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High-Current Connector
ESC Power Wire:	14 gauge
